关注次数：151次
商品类型：ETS-Lindgren
上架时间：2024-01-26 13:06:39
产品描述：Key FeaturesFrequency Range 20 MHz to 200 MHzCompact Size for Use in Limited SpaceQuality Construction for Trouble-Free ServiceUnique Element Design Improves Pe···
咨询电话：020 2818 6136
Frequency Range 20 MHz to 200 MHz
Compact Size for Use in Limited Space
Quality Construction for Trouble-Free Service
Unique Element Design Improves Performance
Peak Power Handling Capability Up to 100 W

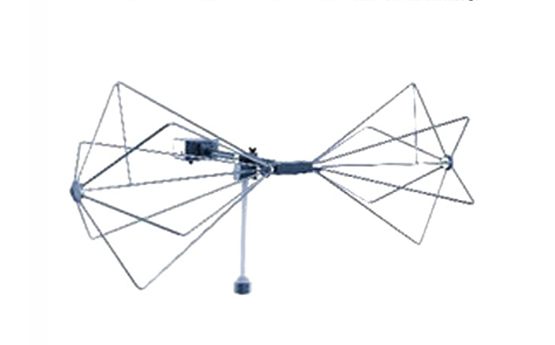

The Model 3104C Biconical Antenna has a traditional coaxial wound balun, which provides a broad frequency range and moderate gain for both transmitting and receiving.
ETS-Lindgren’s Model 3104C Biconical Antenna has a traditional coaxial wound balun, which provides a broad frequency range and moderate gain for both transmitting and receiving. This antenna may be used for radiating immunity measurements provided that the input power is limited to no more than 100 W peak.
ETS-Lindgren is the only manufacturer to offer optional extended elements. These elements are twice as long as standard elements and enable users to generate high fields at low frequencies with less than 25% of the power usually required.
3104C Biconical Antenna SPEC download : 3104C Biconical Antenna
