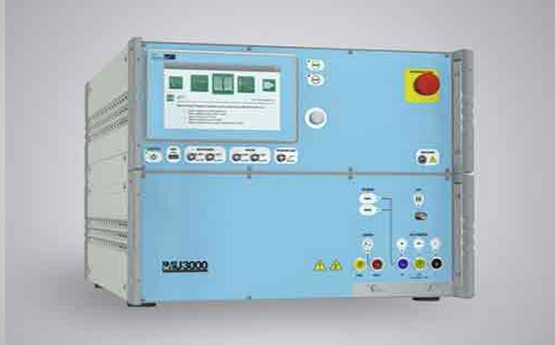

IMU3000 MODULAR GENERATOR FOR IMMUNITY TESTING

关注次数:475次

商品类型:EMC Partner

上架时间:2024-01-26 12:43:11

产品描述:IMPULSES / CIRCUITSEFT, Surge, Magnetic Field, Magnetic Field,Telecom 10-700, Ringwave, Common mode continuous testing, Variations DipsSTANDARDSIEC 61000-4-2, I···

咨询电话:020 2818 6136

IMPULSES / CIRCUITS

EFT, Surge, Magnetic Field, Magnetic Field, Telecom 10-700, Ringwave, Common mode continuous testing, Variations Dips

STANDARDS

IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-8, IEC 61000-4-8, IEC 61000-4-11, IEC 61000-4-12, IEC 61000-4-16, IEC 61000-4-19, IEC 61000-4-29


MULTIFUNCTIONAL GENERATOR FOR IEC TESTING

FEATURES

Up to 10 basic norms with one generator, newest versions always

Fused and unfused EUT input

Broad range of accessories

Computer interface and software control

Built-in or external environment parameters measurement

BENEFITS

Flexible and cost effective configuration

True on site hardware and firmware updates

Quick learning and accommodation

Reliable solution ready for future requirements

Automation at your disposal

MODULAR GENERATOR FOR CONDUCTED IMMUNITY TESTING UP TO 8KV SURGE, RING,TELECOM AND 7KV EFT

IEC 61000-4-4 Ed.3 EFT (7kV),1MHz burst,IEC 61000-4-5 Ed.3 SURGE 1.2/50æs (8.1kV), 8/20æs (4.05kA); 10/700æs (8.1kV); RING 0.5æ/100kHz (8.1kV) IEC 61000-4-12 Ed.2 ; CM IEC 61000-4-16 Ed.1.2, up to 35V DIPS IEC 61000-4-11Ed.2 Interrupt up to 16A; DIPS+Variation up to 5A
